| BRAND | Labom |

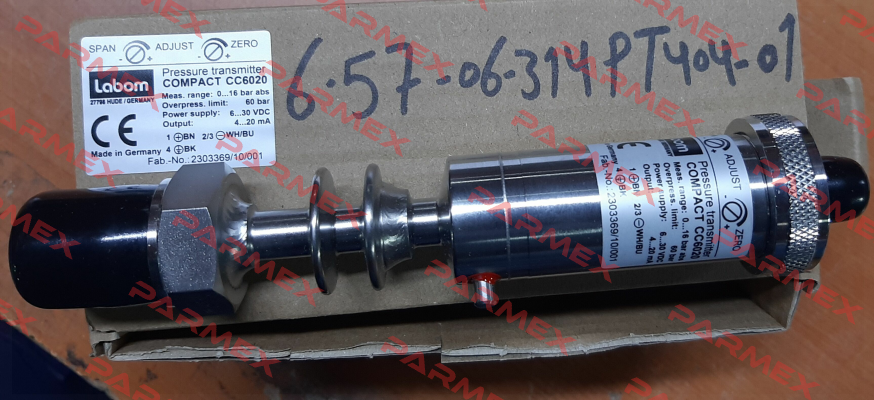

| Product | CC6020-A1093-H1-T110-W4999 |
| Internal code | PMX4982788 |
| Custom code | 90262020 |
| Technical specification | DE1180-D4-A4001-L23-T99-W4999 Order Code: PRESSURE TRANSMITTER COMPACT for diaphragm seal operationCC6 design: with temperature decoupler see data sheet D4-020-7 02 explosion protection: without0 pressure sensor piezoresistive for gauge pressureA1 measuring range -1...24 bar, overload limit 60 bar measuring accuracy: linearity error incl. hysteresis < + 0.2 % f.s. accuracy of adjustment < +/- 0.2 % f.s. 093 output signal: 4...20 mA, 2-wire technologyH1 electrical connection: right angle plug acc. to DIN EN 175301-803-A (DIN 43650, model A) IP 65, for cable ø 4...10 mm T110 ADDITIONAL DESIGN: see belowW4999 design for process temperature up to 205°C DIAPHRAGM SEAL for general application, screw-in thread see data sheet D5-032 process connection: G1/2 A per DIN 3852 model A118 design: standard0 nominal pessure: PN 400D4 connection of meas. instrument directly weldedA400 material wetted parts: stainless steel mat.-no. 1.4404/1.4435 (316L)1 system filling: Synthetic oil, free of silicon FD1 acc. to FDA 21 CFR 178.3570 / H1-registered L23 temperature range: see belowT99 -20......+205°C ADDITIONAL DESIGN: see belowW4999 suitable for clamping sleeves like F1-AC-00334-k # Spare part for Fab.-No.: 2313007/10/001 |
Discover the superior quality and performance of the Labom CC6020-A1093-H1-T110-W4999 with "Parmex Automatización" SRL in Mexico . Whether you are looking for reliability or efficiency, this product meets all your industrial needs.
The CC6020-A1093-H1-T110-W4999 is designed to provide optimal performance and durability in various applications. Known for its high-quality construction and innovative features, it is a preferred choice for professionals.
Key Features of CC6020-A1093-H1-T110-W4999 :
At "Parmex Automatización" SRL , we offer the CC6020-A1093-H1-T110-W4999 at competitive prices and with the fastest delivery times across Mexico . Our expert team is ready to assist you with all your inquiries and provide tailored solutions to meet your specific needs.
Why Choose "Parmex Automatización" SRL ?
Get Your Quote Today! Ready to enhance your operations with the CC6020-A1093-H1-T110-W4999 ? Contact us now for a personalized quote. Fill out the form below or send us an email with your inquiry. Let us help you make a cost-effective, quality-driven choice for your business.
Important Notice: While we supply Labom products, "Parmex Automatización" SRL is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
Where can I buy CC6020-A1093-H1-T110-W4999 by Labom in Mexico?
You can purchase CC6020-A1093-H1-T110-W4999 by Labom from "Parmex Automatización" SRL. We serve customers across Mexico, offering competitive prices and reliable service.
What is the price of the CC6020-A1093-H1-T110-W4999?
For customized pricing and availability, please fill out our contact form or give us a call. We are dedicated to providing solutions that align with your specific requirements.
Who is the official distributor or seller of Labom in Mexico?
While we are not the official distributor or seller of Labom in Mexico, we source our products from reliable channels and offer you original Labom equipment at competitive prices.
How can I access CC6020-A1093-H1-T110-W4999 catalogs, user manuals, technical documents, and PDFs?
You can access catalogs, user manuals, and technical documents for CC6020-A1093-H1-T110-W4999 on our website. Visit our resources section or contact us directly for specific documents.
Do you provide technical support for CC6020-A1093-H1-T110-W4999?
While we do not offer direct technical support, we can assist you in contacting the manufacturer to ensure you receive the support you need.
